Camera Geometries

The CameraGeometry provides an easy way to work with images or data cubes related to Cherenkov Cameras. In ctapipe, a camera image is simply a flat 1D array (or 2D if time information is included), where there is one value per pixel. Of course, to work with such an array, one needs spatial information about how the pixels are laid out. Since CTA has at least 6 different camera types, and may have multiple versions of each as revisions are made, it is necessary to have a common way to describe all cameras.

So far there are several ways to construct a CameraGeometry:

• use the CameraGeometry constructor, where one has to specify all necessary information (pixel positions, types, areas, etc)

• use CameraGeometry.from_name(telescope, revision) (ex: geom = CameraGeometry.from_name('HESS',1)). This reads the telescope def from the $CTAPIPE_EXTRA directory, and so far we only have HESS telescopes there (more to come)

• load a Monte-Carlo file, get the list of pixel X and Y positions and the telescope focal length and use CameraGeometry.guess(x,y,flen) - this will work for all telescopes in CTA so far

• load it from a pre-written file (which can be in any format supported by astropy.table, as long as that format allows for header-keywords as well as table entries.

Once loaded, the CameraGeometry object gives you access the pixel positions, areas, neighbors, and shapes.

CameraGeometry is used by most image processing algorithms in the ctapipe.image module, as well as displays in the ctapipe.visualization module.

Input/Output

You can write out a CameraGeometry by using the CameraGeometry.to_table()

method to turn it into an astropy.table.Table, and then call its write

function. Reading it back in can be done with CameraGeometry.from_table()

geom = CameraGeometry(...)  # constructed elsewhere

geom.to_table().write('mycam.fits.gz') # FITS output
geom.to_table().write('mycam.h5', path='/cameras/mycam') # hdf5 output
geom.to_table().write('mycam.ecsv', format='ascii.ecsv') # text table

# later read back in:

geom = CameraGeometry.from_table('mycam.ecsv', format='ascii.ecsv')
geom = CameraGeometry.from_table('mycam.fits.gz')
geom = CameraGeometry.from_table('mycam.h5', path='/cameras/mycam')

A note on Pixel Neighbors

The CameraGeometry object provides two pixel-neighbor representations: a neighbor adjacency list (in the neighbors attribute) and a pixel adjacency matrix (in the neighbor_matrix attribute). The former is a list of lists, where element i is a list of neighbors j of the i*th pixel. The latter is a 2D matrix where row *i is a boolean mask of pixels that are neighbors. It is not necessary to load or specify either of these neighbor representations when constructing a CameraGeometry, since they will be computed on-the-fly if left blank, using a KD-tree nearest-neighbor algorithm.

It is recommended that all algorithms that need to be computationally fast use the neighbor_matrix attribute, particularly in conjunction with numpy operations, since it is quite speed-efficient.

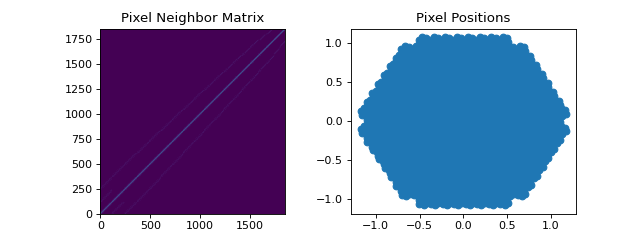

Examples

from ctapipe.instrument import CameraGeometry
from matplotlib import pyplot as plt

geom = CameraGeometry.from_name("LSTCam")

plt.figure(figsize=(8, 3))
plt.subplot(1, 2, 1)
plt.imshow(geom.neighbor_matrix, origin="lower")
plt.title("Pixel Neighbor Matrix")

plt.subplot(1, 2, 2)
plt.scatter(geom.pix_x, geom.pix_y)
plt.title("Pixel Positions")

(Source code, png, hires.png, pdf)

See also ctapipe.image.tailcuts_clean() and ctapipe.image.dilate() for usage examples.

Reference/API

ctapipe.instrument.camera.geometry Module

Utilities for reading or working with Camera geometry files

Classes

CameraGeometry(camera_name, pix_id, pix_x, …)	CameraGeometry is a class that stores information about a Cherenkov Camera that us useful for imaging algorithms and displays.
UnknownPixelShapeWarning
PixelShape(value)	Supported Pixel Shapes Enum
